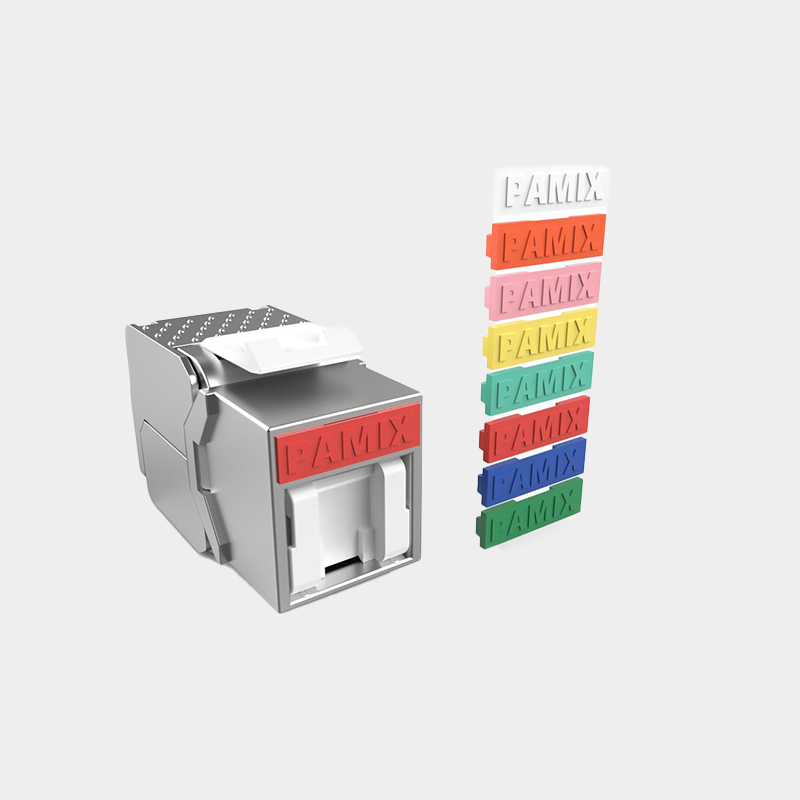

PAMIX KS-C6AC-D is a CAT6A RJ-45 female connector with dust cover developed and designed to have colored stickers added to the RJ45 female connector for better and easy cable management. Adding colored stickers to the RJ45 female connector enables installers and IT network managers to distinguish between those used for different system from both sides work area and rack patch panel. It provide excellent voice, data and video signal transmission. It supports 10G Ethernet application, frequency up to 500 MHz. Its 360° shielding minimizes EMI/RF noise and alien cross talk. It supports all POE standards. Dust cover was precisely designed and fixed to protect internal contacts and keep them clean.
PAMIX RJ45 keystone – KS-C6AC-D
7,00 лв.
+ Free Shipping- Cat 6A 10G 500MHz class EA performance.
- RJ45-Jack, 8P8C connector.
- Snap in connector fixing.
- 8 different keystone colored stickers.
- Compliance with the component standard IEC 60603-7-51.
- Support PoE+ & 4PPoE applications (IEEE 802.3af, 802.3at, 802.3bt).
- Solid cable termination 1/22AWG (0.65mm) to 1/24AWG (0.45mm).
- Stranded cable termination 7/22AWG (0.76mm) to 7/26AWG (0.48mm).
- 5.0mm – 8.5mm cable OD.

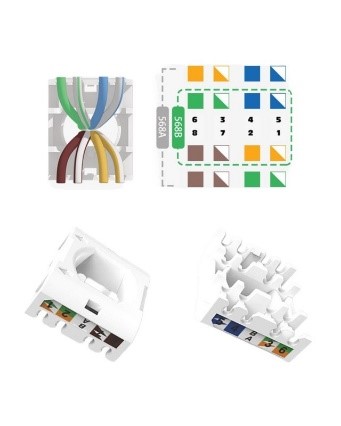

- Support EIA/TIA 568 A & B termination standards and label color code.
- Tool-less jack module.
- Tool free mounting in patch panels.

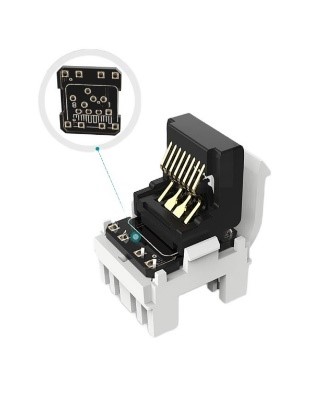

- Movable wings’ necks ensure 360° fully cable shielding locked by plastic tie.
- Re-usable in case of pad termination or cable damage.
- Dust proof shutter for better pins protection.
- Dimensions: 19.96 X 16.06 X 36.65 mm (H X W X D).
- Operating temperature: -10 to 60 °C.
- Storage temperature: -40 to 70 °C.
- 1.2MM UL94V0 PCB.
- Fireproof UL94V0 IDC body.
- Snap in force < 30N.
