PAMIX Elite keystone jack is a CAT6A RJ-45 female, 4PPoE can deliver up to 90 Watt at PD side with 4 energized pairs, shielded with dust cover. It provides excellent voice, data and video signal transmission. It supports 10G Ethernet application, frequency up to 500 MHz. Its 360° shielding minimizes EMI/RF noise and alien cross talk. Dust cover was precisely designed and fixed to protect internal contacts and keep them clean. Its one way fixing cap prevents installers’ incorrect wiring.

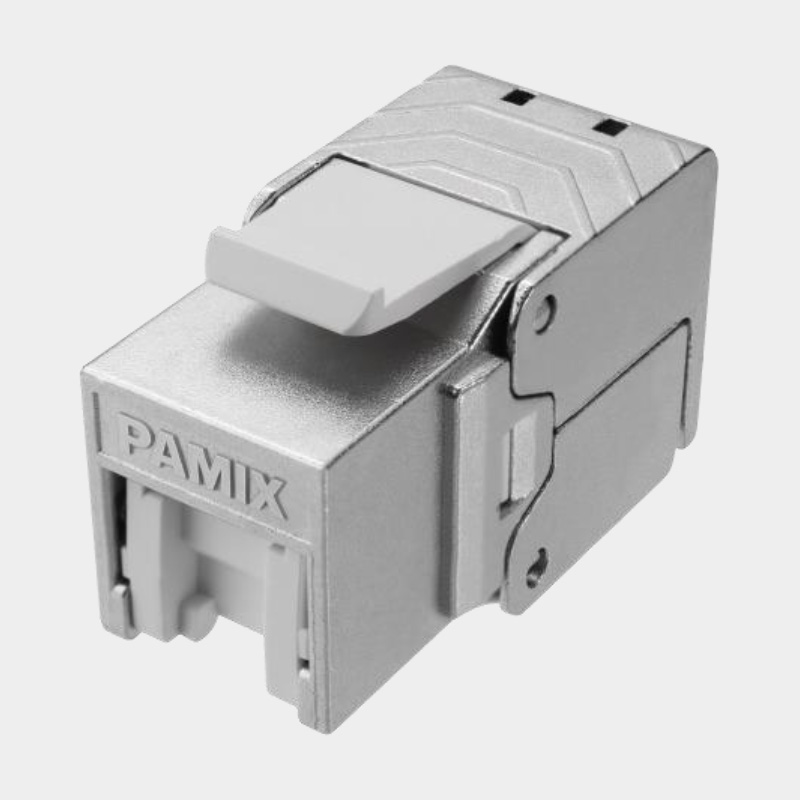

PAMIX Elite Cat 6A Keystone Jack
5,00 лв.
+ Free Shipping- Cat 6A 10G 500MHz class EA performance.
- RJ45-Jack, 8P8C connector.
- Snap-in connector fixing.
- Compliance with the component standard IEC 60603-7-51.
- Support PoE++ & 4PPoE applications (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt).
- Solid cable termination 22AWG to 24AWG.
- Stranded cable termination 22AWG to 26AWG.
- 5.5mm – 8.5mm cable OD.
- Support EIA/TIA 568 A & B termination standards and label color code.
- Tool-less jack module.
- Tool-free mounting in patch panels.

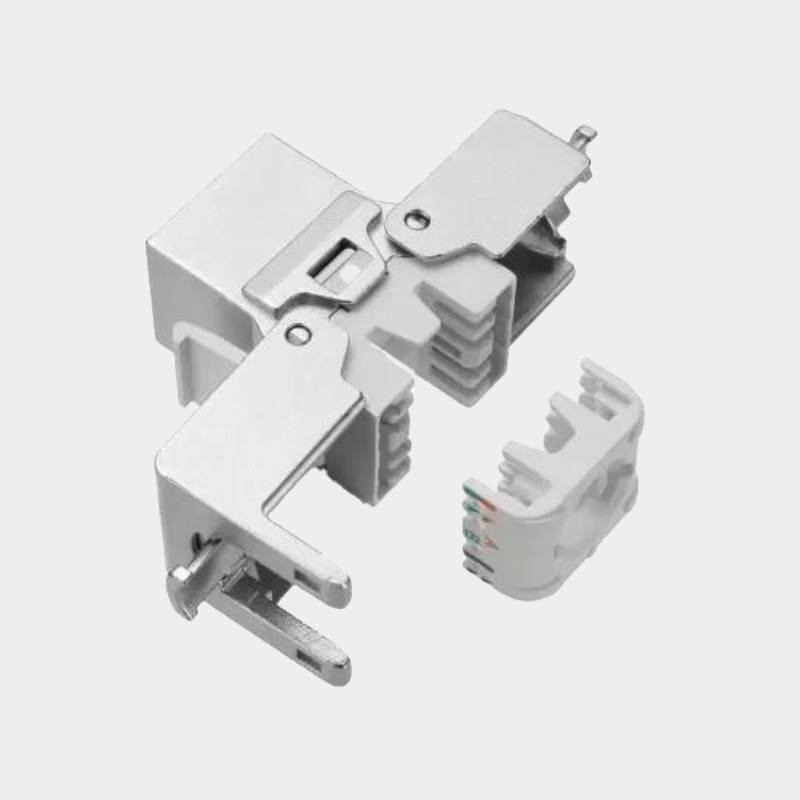

- Movable wings’ necks ensure 360° fully cable shielding locked by plastic tie.
- Re-usable 20 cycle in case of pad termination or cable damage.
- Dust proof shutter for better pins protection.
- Operating temperature: -10 to 60 °C.
- Storage temperature: -40 to 70 °C.
